DS103 Display

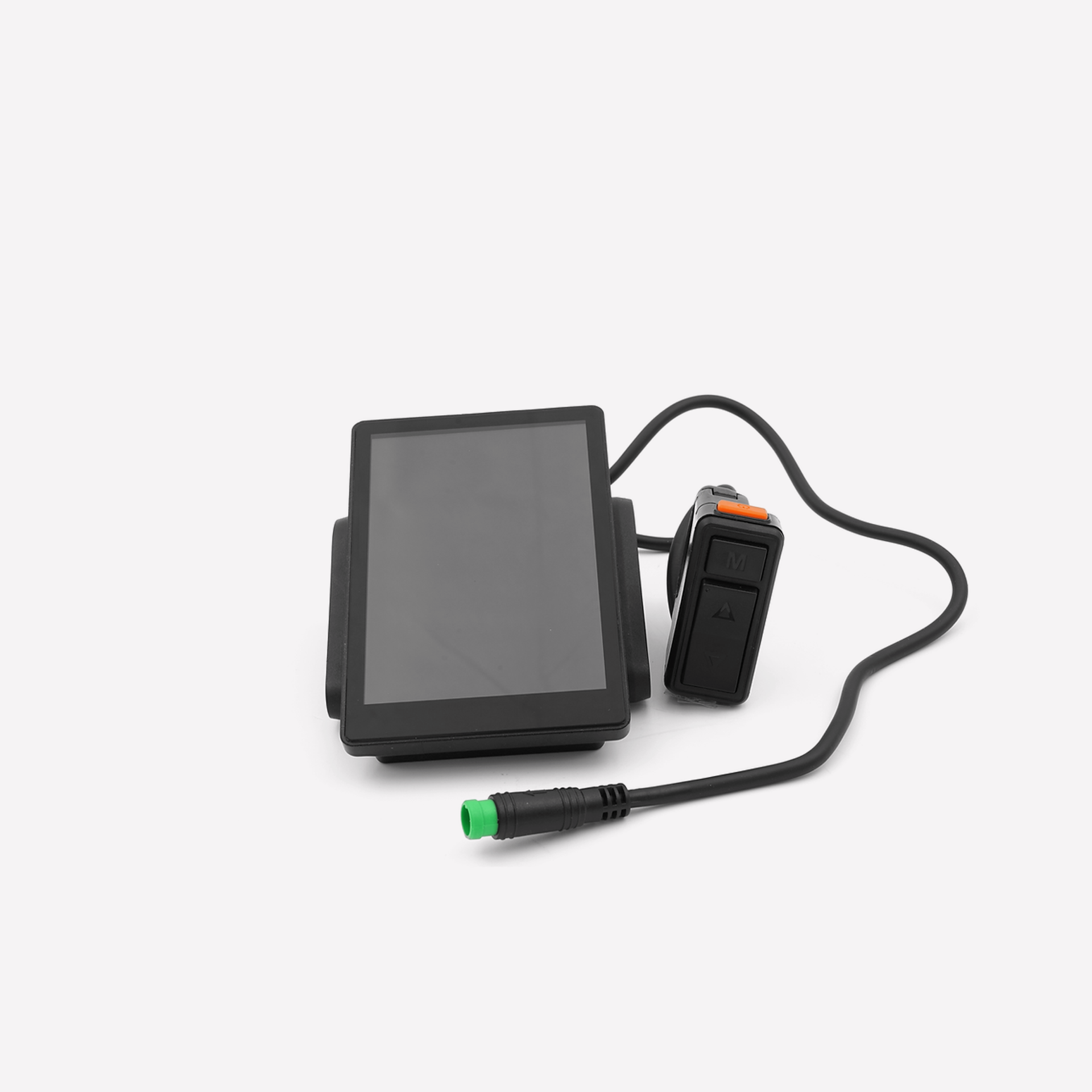

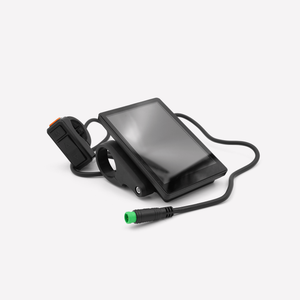

The CYC DS103 is a robust, full-color LCD display designed for high-performance electric bikes and mid-drive systems. With its larger screen and advanced functionality, it offers riders a comprehensive view of ride data, motor output, and system diagnostics in real time. The DS103 is the perfect choice for riders who demand more control and visibility from their e-bike display.
Key Features:
-
High-Resolution Color Display: Crisp, vibrant LCD screen ensures excellent readability in all light conditions.
-
Comprehensive Ride Info: Shows speed, assist level, battery percentage, trip info, and motor power output.
-
Durable & Weather-Resistant: IP65-rated for water and dust resistance, suitable for rugged rides in any climate.
-
User-Friendly Controls: Comes with an intuitive handlebar-mounted remote for easy menu navigation and assist level adjustment.
-
Wide Voltage Compatibility: Supports 36V to 52V systems, ideal for both standard and high-power setups.
| SPECIFICATIONS * | |
|---|---|
| Display Type | LCD |
| Display | Full-Color Matrix Display |
| Rated Voltage (DCV) | 60 |
| Operating Temperature | -20 – 45℃ |
| Weight (g) | 202 |
| Dimensions (mm) | 98 x 63 x 69 |
| Holder (mm) | Ø 22.2 / 25.4 / 31.8 |
| Cable Length (mm), Connector Type | 230 M5.2 / 850 M5.2 |
| USB Charge | 5V 500mA |
| Waterproof | IP65 |
| Certifications | CE / EN 15194 / REACH / ROHS |
